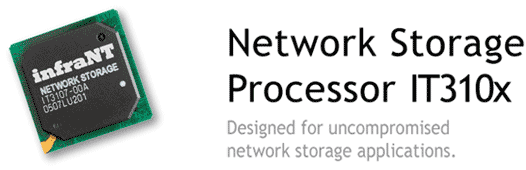

NSP IT310x

Infrant’s Network Storage Processor, supporting multiple Serial ATA hard disk interfaces, Gigabit Ethernet, and Hardware RAID 0/1/5 redundancy, addresses the emerging network storage appliance market for file sharing, backup, and digital media applications. The highly integrated system-on-chip architecture of the IT310x aims to enable simple and powerful network storage solutions to a broader market such as departments, workgroups, offices, and home networks.

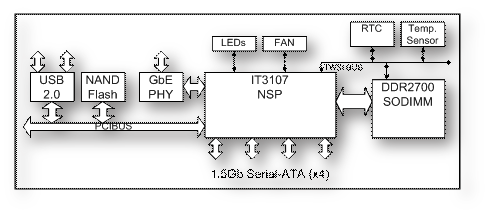

IT310x Specs:

32-bit RISC CPU, supporting up to 280MHz
Two (IT3102) or Four (IT3107) Serial ATA Channels
Hardware RAID 0/1/5 and XRAID™ (IT3107 only)
Gigabit Ethernet MAC supporting Jumbo Packets
64-Bit DDR-SDRAM Interface
PCI Host Controller

DataJunction™
Diskless Boot using NAND Flash
TWSI Interface
JTAG Boundary Scan
449-pin Pb-free PBGA
1.5V Core, 2.5V DRAM, 3.3V IO

Powered by RAIDiator™.
Feature-wise, you only need to look at RAIDiator, the embedded operating system that drives ReadyNAS. You’ll find that RAIDiator brings a lot of enterprise-level features and simplifies them so everyone can understand and take advantage of them.
